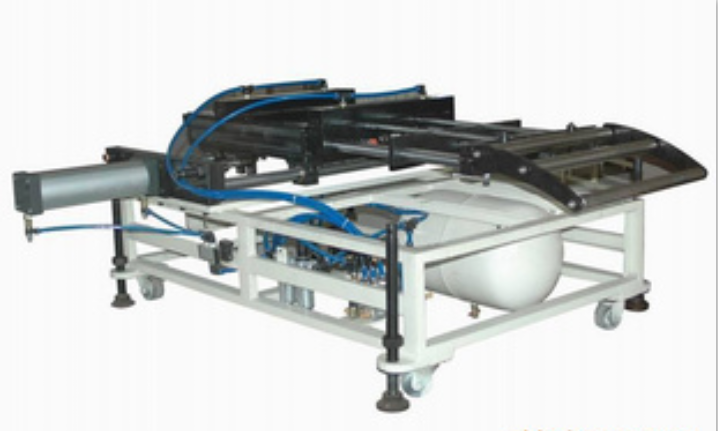

Big heavy duty automatic pneumatic air feeder machine

Author:admin Time:2017-10-20

Big heavy duty automatic pneumatic air feeder machine

detailsProblems(8)Online order


Detailed Info


Item/model AF-8C AF-9C AF-10C AF-11C AF-12C AF-13C AF-14C AF-15C
Max.feeding width(mm) 300 350 400 450 500 600 700 800
Max.feeding length(mm) 300 350 400 450 500 600 700 800
Material thickness(mm) 2.5 3 3 3 3 3 3 3
Pneumatic pressure
(kg/cm²)
4.5 4.5 4.5 4.5
Max.feeding S.P.M.
(MC/min)
45 35 30 25
Fixed clamp friction(kg) 100 119 119 119
Moving clamp friction(kg) 217 220 245 245
Tension force(kg) 74 77 85 85
Air consumption(L/mm) 162.5 174.2 182.5 170.5
weight(kg) 95 156 178 200
size(mm3) 1146*95*360 1246*95*410 1314*95*460 1414*95*510

Conventional model introduction of air feeder

  1. The central hole of the main structure is by lapped finishing first and then electroplating so as to better ensure its roundness and straightness, which thus enables the core shaft to run smoothly.
  2. After processed, the main structure goes through anti-corrosive treatment, and then it is cleaned through ultrasonic wave before assembled so as to guarantee trouble-free when processing leftover materials.
  3. The exchangeable reversal valve is constructed large circular angle and its internal bore goes through mirror polishing treatment so as to greatly improve feeder’s loading speed and the life span of sealing ring.
  4. All the sealing parts are introduced from Japan.
  5. Two-position three-way valve structure is adopted in the new floating lever and thus gas-leaking problem is solved.
  6. Two units of pneumatic cushions are adopted to efficiently reduce vibration and noise.
  7. The guiding rail is processed through hard chrome plating finish after going high tensile steel heating process. The connection between mobile part and guiding rail goes through accurate grinding so as to make machine moving and its motion flexible and stable.
  8. All screws are fixed with high-strength oxygen pressed rubber so as to avoid loosening from vibration, attain good sealing capacity.
  9. Air feeder feature compact conformation, high accuracy, high speed, and a good combination of beauty and application. All machines are tested strictly before go out factory.
  10. Particular model can be produced according to different dimension and length.
