Partial Pendulum Feeder Series

Auto Zigzag Feeder Machine

Author:admin Time:2017-10-30

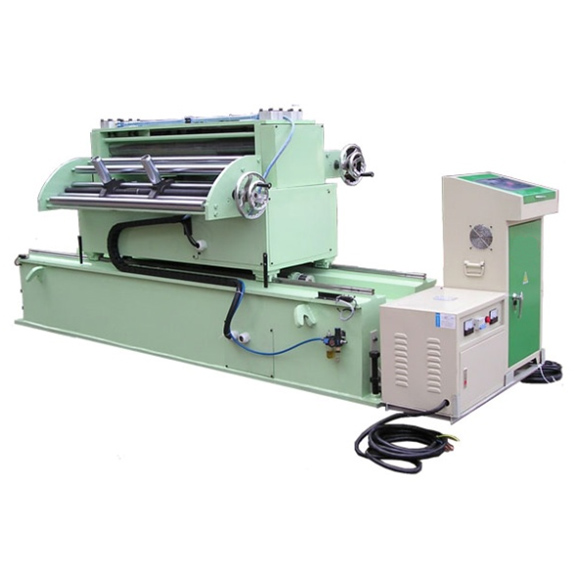

Auto Zigzag Feeder Machine

detailsProblems(8)Online order


Auto Zigzag Feeder Machine Features :


1. Suitable for Symmetric alternative forms processing,deflection mobile and feed

synchronization could completed at the same time.It(Single-step migration)could save

material(more than 1/4).

2.Offset use high speed linear bearing,special handling on slide way ,which have 4

features,such like:Mute,high wear resistance,load friction and smooth movement.

 Specifications:



Model
Item
NCP-300
NCP-400
NCP-500
NCP-600
NCP-800
Material
σb≤500Mpa σs≤280Mpa
Width of Material(mm)
300
400
500
600
800
Thickness of Material (mm)
0.3-2.0
Max.Feed Length(mm)
9999.99
About Migration Velocity(m/min)
30(max)
Before and after Feeding speed(m/min)
20(max)
Left Center Displacement(mm)
150(max)
200max
250(max)
300max
400(max)
Roll Pressure
Spring Type
Releasing System
Pneumatic Type
Feed Roll
Upper 1/Lower 1
Feed Precision(mm)
≥±0.02mm
