Uncoiler Straightener Feeder 3 In 1 Series

NCMF 3IN1 M/Thin Servo Feeder Machine

Author:admin Time:2018-03-27

NCMF 3IN1 M/Thin Servo Feeder Machine

detailsProblems(8)Online order


NCMF 3IN1 M/thin Servo feeder Machine
 ( M/thin material standar )
●Material thickness:0.3—3.2mm       ● Width:300----1000mm


Product Description

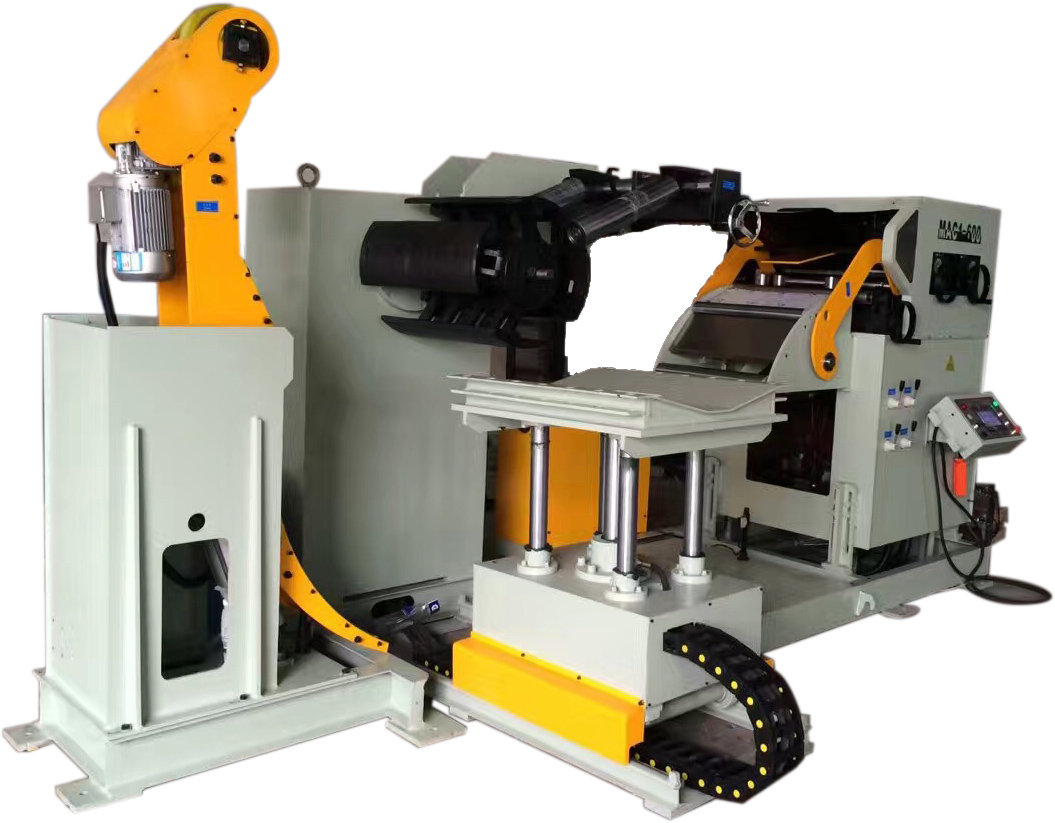

●This big machine, combines uncoiler function, straightener function, NC servo roll feeder function together, so as 3 in 1.
● It can decoil suitable sheet metal coil, then straighten the sheet metal, then feed the sheet metal to press machine automatically, for automatic stamping processing.

Features

●Suitable for various metal sheet uncoiling, straightening, feeding.

●Suitable for producing metal part hardware, electron, electrical appliance, toy and auto parts etc, by continuous uncoiling, straightening, feeder, pressing production.

● Japanese brand servo motor, PLC, and other good quality electric parts, with little malfunction, but long using time.

●Rollers have chrome plating, high precision, more durable.

●Input feeding length number easily, easy operation, safe and high stability.

●According to ergonomic optimization design, stable quality and safety performance, compact structure, to save using space
to ensure complex strurture and stable   safety additionally, it can save space.

●It adopts 9 pieces of straightening rollers, so can straighten high rigidity material effectively, to improve material straightening precision and feeding precision.

● For customers’ optional requirement, through servo system control, to adjust straightening range automatically, as higher automation.


Standar Specification
●Electric Eye Loop Contol System
●Freed and Straightener rolls with a hard chrome finshed
●Outgoing catenary to assist and support the material
●Feeding line easily adjusts by advance worm gear screw jacks device
●Reference in dictator adjuster
●Hydraulic mandrel expansion
●Uncoiler-inverter device
●Hold down arms device
●The uncoil contain the butterfly brakes air compressor
●LCD touch screen operation system


Optional Specification
 ●Die-high electric conditioning
 ●Hydraulic material feed in cart


Techonolege Parameter

Model  Unit NCMF-300 NCMF-400 NCMF-500 NCMF-600 NCMF-800 NCMF-1000
Material width mm 50-300 50-400 50-500 50-600 50-800 50-1000
Thickness of material mm 0.3-3.2
Material weight KG 3000 3000 3000-5000 5000-7000
Coil I.D mm 508
Coil O.D mm 1200-1600
Max.Speed m/min 16-22
Standard feeding length mm ~500 ~500 ~500 ~500 ~500 ~500
Work roll                   上5 / 下4
Feeding roller group 1 1 1 1 1   1
Servo motor KW AC2.9 AC2.9 AC2.9 AC2.9 AC2.9 AC2.9
Uncoil motor KW AC1.5 AC1.5 AC1.5 AC2.2 AC2.2 AC2.2
Air pressure kg/cm 0.49 0.49 0.49 0.49 0.49 0.49
Uncoiler expansion mode   Hydraulic pressure
Power supply V 220-440
Straightening Capacity:

Material thickness(mm) Material width(mm)
   0.3 400 600 800    1000
0.4
0.6
0.8
1.0
1.2
1.4 500
  1.6   470 470 470
1.8   400 400 400
2.0 360 360 360
2.3  300   300 300 300
2.5  230   230 230 230
  2.8  150 150 150 150
