Uncoiler Straightener Feeder 3 In 1 Series

NCLF 3IN1 super thick material servo feeder machine

Author:admin Time:2018-03-27

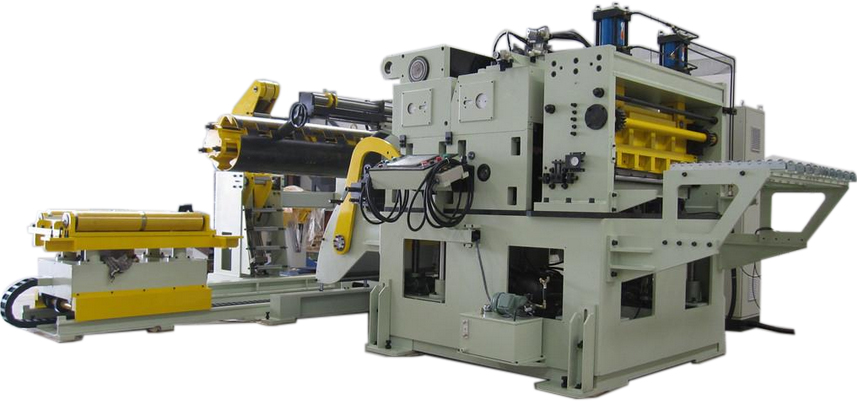

NCLF 3IN1 super thick material servo feeder machine

detailsProblems(8)Online order


NCLF 3IN1 super thick material servo feeder machine
(Super thick material standar)
● Material thickness:0.8—9.0mm       ●Width:600----1600mm
Product Description
● This big machine, combines uncoiler function, straightener function, NC servo roll feeder function together, so as 3 in 1.
●It can decoil suitable sheet metal coil, then straighten the sheet metal, then feed the sheet metal to press machine automatically, for automatic stamping processing.

Features
●Suitable for various metal sheet uncoiling, straightening, feeding.
● Suitable for producing metal part hardware, electron, electrical appliance, toy and auto parts etc, by continuous uncoiling, straightening, feeder, pressing production.
● Japanese brand servo motor, PLC, and other good quality electric parts, with little malfunction, but long using time.
●Rollers have chrome plating, high precision, more durable.
● Input feeding length number easily, easy operation, safe and high stability.
● According to ergonomic optimization design, stable quality and safety performance, compact structure, to save using space
to ensure complex structure and stable safety additionally, it can save space.
● It adopts 7 pieces of straightening rollers, so can straighten high rigidity material effectively, to improve material straightening precision and feeding precision.
● For customers optional requirement, through servo system control, to adjust straightening range automatically, as higher automation.
Standar Specification
 ●Electric Eye Loop Contol System
 ●Freed and Straightener rolls with a hard chrome finshed
●Outgoing catenary to assist and support the material
●Feeding line easily adjusts by advance worm gear screw jacks device
●Reference in dictator adjuster
●Hydraulic mandrel expansion
●Uncoiler-inverter device
●Hold down arms device
●The uncoil contain the butterfly brakes air compressor
●LCD touch screen operation system
Optional specification
●Die-high electric conditioning
●Hydraulic material feed in cart
Techonolege Parameter

Model Unit NCLF-600 NCLF-800 NCLF-1000 NCLF-1300 NCLF-1600
Material width mm 50-400 50-500 70-600 70-800 70-1000
Thickness of material mm 0.8-9.0
Material weight KG 5000 5000 5000-7000 5000-10000 5000-1000
Coil I.D mm 508
Coil O.D mm 1200-1600
Max.Speed m/min 16-22
Standard feeding length mm ~500 ~500 ~500 ~500 ~500
Work roll   上5 / 下4
Feeding roller 1 1 1 1 1
Servo motor KW AC5.5 AC7.5 AC7.5 AC15 AC22
Uncoil motor KW AC2.2 AC2.2 AC3.75 AC3.75 AC3.75
Air pressure kg/cm 0.49 0.49 0.49 0.49 0.49
Uncoiler expansion mode   Hydraulic pressure
Power supply V 220-440

Straightening Capacity:
Material thickness(mm) Material width(mm)
0.8-2.3 600 800 1000 1300 1600
2.5
  2.8 1300 1380
  3.2 1180 1180
  4.0 900 1013 1013
4.5 700 800 800 800
  5.0 500 640 640 640 640
  6.0 450 450 450 450 450
7.0 330 330 330 330 330
  8.0 253 250 250 250 250
9.0 200 200 200 200 200
