Cut To Length &Slitting Line Combined Line

Plate Slitting&Cutting Line

Author:admin Time:2017-10-30

Plate Slitting&Cutting Line

detailsProblems(8)Online order


*Efficient and reliable machinery (performance)

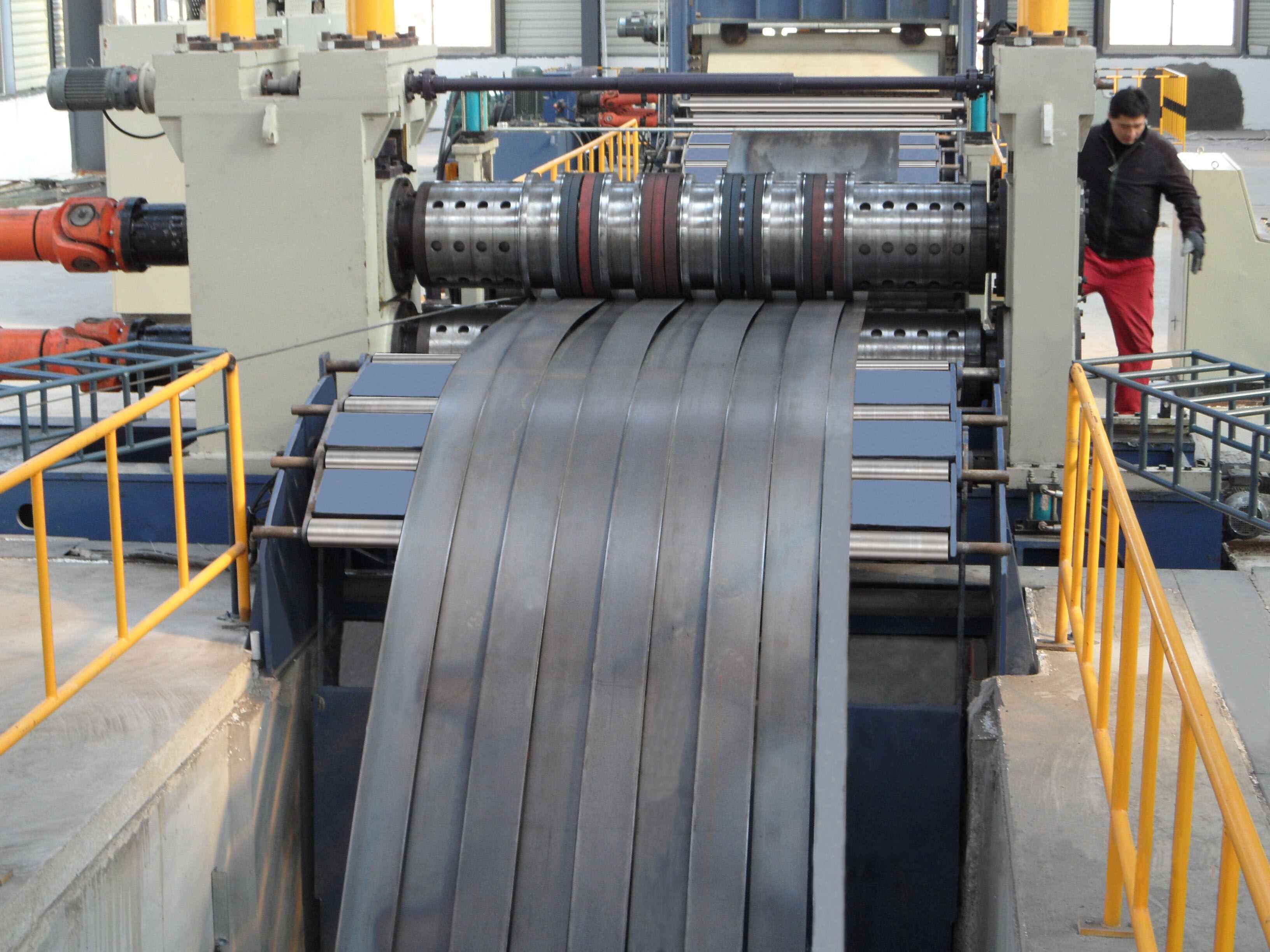

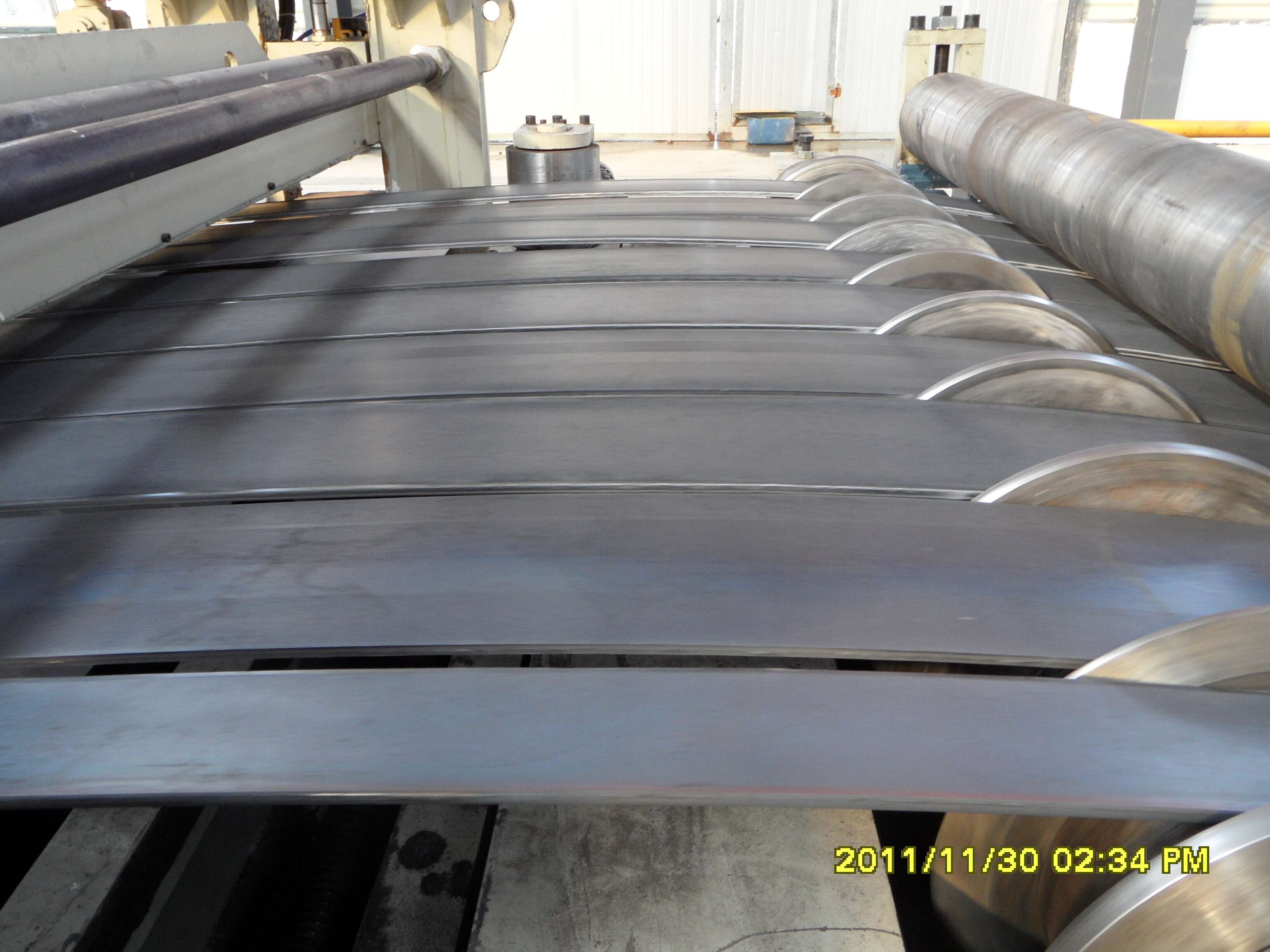

* Precision slitting shear
*Neat roll belt
*Delightful man-machine interface

*Delightful man-machine interface

technical parameter
  NO.

Specifica

tions

Applicable

 materials

     Mpa THK(mm) Width  (mm)   ID   OD Weight (T)

Slitting width

(mm)

Slits (Pc)

Slitting precision

(mm)

Crosscut Length (mm)
1

2-8.0mm

X2000mm

Q235

/Q345

σb≤500Mpa  4.0-8.0 650-2000

ф508

/610

/760

ф1200-2000 ≤35  ≥60~       <2000 ≤20 ≤±0.25mm 1000-6000
σs≤370Mpa
2

3.0-12mm

X1800mm

Q235   Q235(3-12) 500-1800

ф508

/610

/760

ф1200-2000 ≤35 ≥150 ≤15 ≤±0.5mm 1000-10000
Q345 Q345/B510
B510  3-8mm
3

4.0-16mm

X2200mm

Q235 σb≤820Mpa σS≤750Mpa Q235(4-16) 1000-2200

ф508

/610

/760

ф1200-2200 ≤35 ≥200 ≤10 ≤±0.5mm 1000-12000
Q345 Q345(4-10)
510L B510(4-10)
ZQS700L ZQS700L(5-10)
