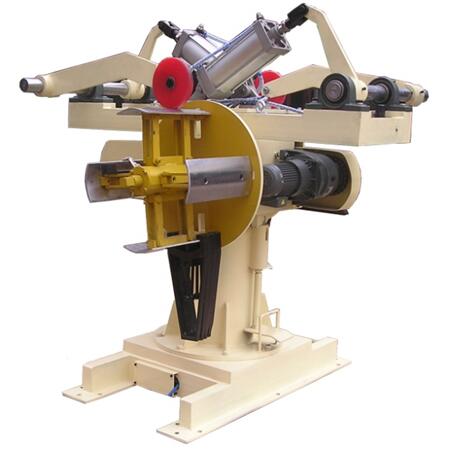

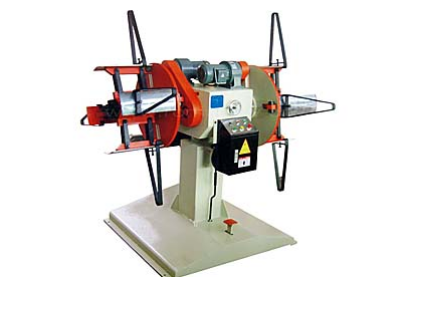

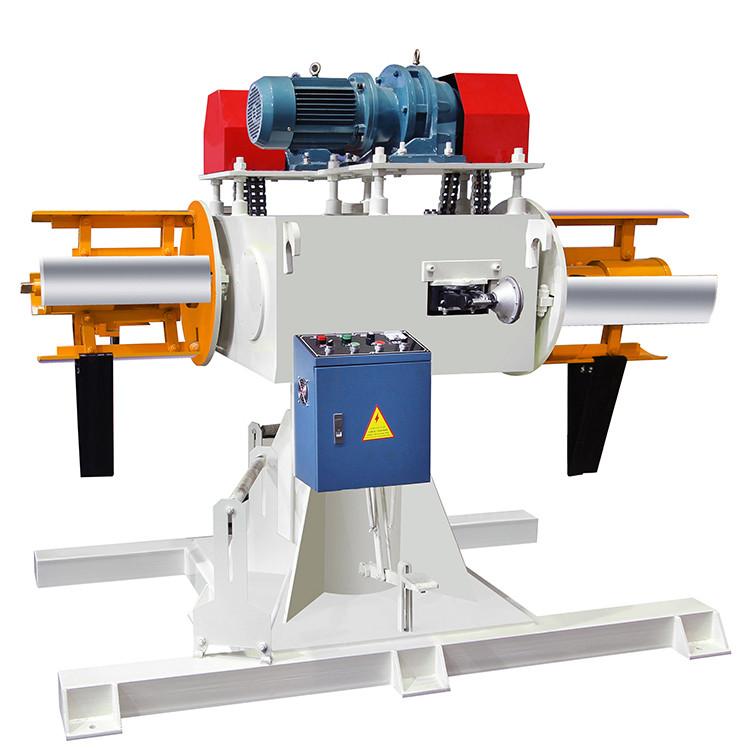

Double Head Uncoiler Machine Series

Belt drive dual-head Materials

Author:admin Time:2017-10-30

Belt drive dual-head Materials

detailsProblems(8)Online order


Mechanical properties:
Double material frame to save refueling time, improve production efficiency; with straightening machine used in conjunction, can be installed motor and electric control is changed to power rack;
Can choose manual expansion and hydraulic expansion in two ways;
This machine is suitable for the quick speed, such as the stator, the rotor, the EI piece and so on.

Model MDW-200 MDW-300 MEW-200 MEW-300
 Material width mm 200 300 200 300
 Material thickncss mm 0-1.6 0-0.3 0-1.6 0-0.3
Reducer NO 1:60×2
Motor HP NO 2×1∕2
Power NO AC380V(AC three-phase voltage)380V
Material I .D mm Φ300-460 Φ450-530 Φ300-460 Φ450-530
Material O.D mm Φ1200
Max. Load kg 500×2 1000×2 500×2 1000×2
Machine Weight kg 300 400 400 500
