2 In 1 Straightener Machine Model:GL

detailsProblems(8)Online order

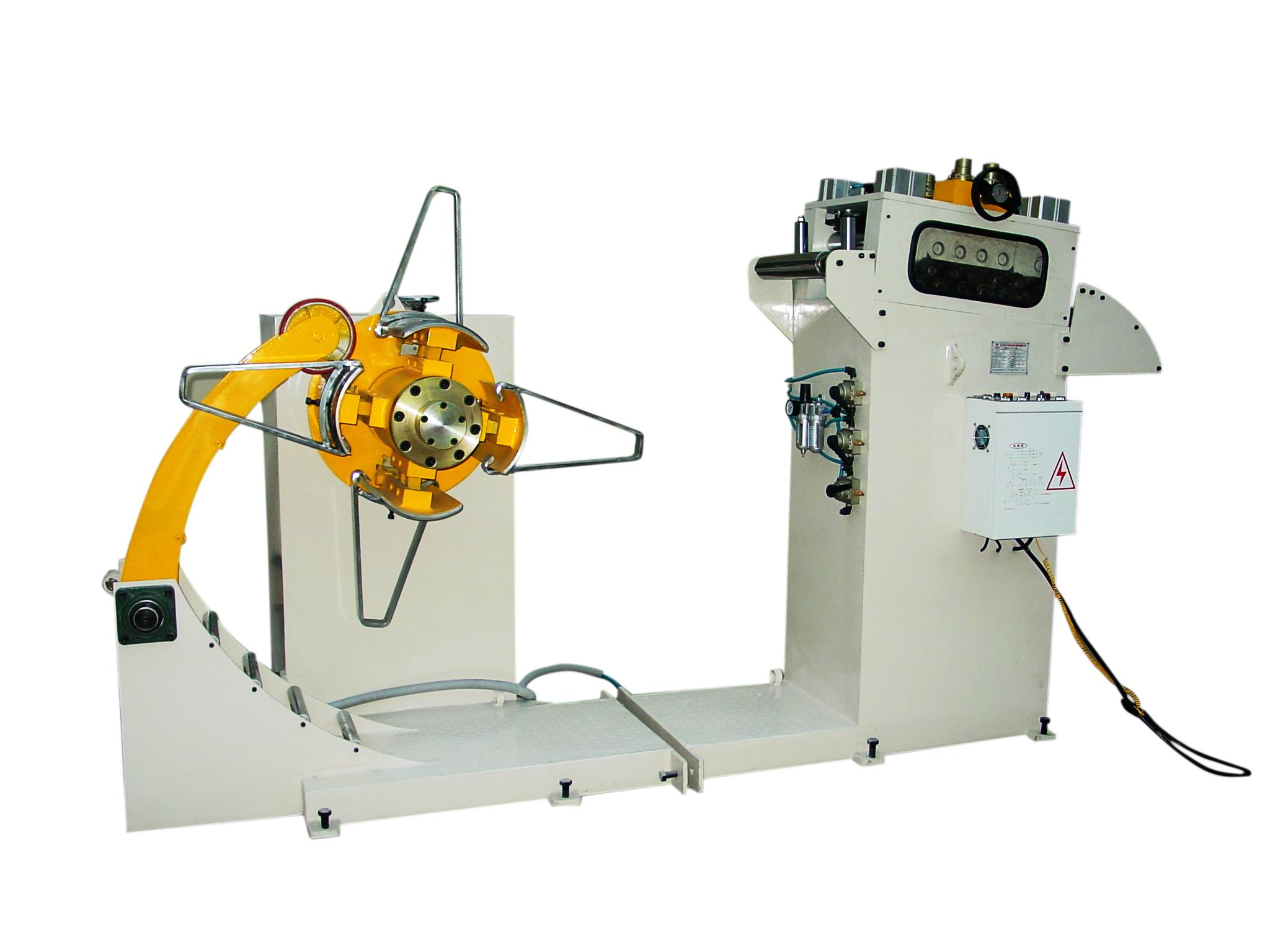

2 In 1 Straightener Machine Model:GL

1.Uncoiler Sraightener 2 in 1 Machine speed can reach 0-16m/min. And suitable all kinds of metal coil Straightening.

2.Uncoiler Sraightener 2 in 1 Machine is suitable 0-3.2mm thickness all metal coil straightening.

3.Uncoiler Sraightener 2 in 1 Machine widely used to computer, mobile phone,automobile industry,appliances manufacturing, medical apparatus and instruments, hardware & Metal parts etc industry.

Model
Unit
GL-200
GL-300
GL-400
GL-500
GL-600

Material Width
mm
200
300
400
500
600

Material Thick
mm
0.3-3.2
0.3-3.2
0.3-3.2
0.3-3.2
0.3-3.2

Feeding Speed
m/min
15
15
15
15
15

Straighten Rollers
Qty
3 On Top/4 On Bottom
(4 Bottom Rolls have Drive Function)

Driving Rolls
Qty
Inlet: 2/Outlet: 2

Rack Load
kg
600
1000
1500
2000
2000

Expansion Scope
mm
460-520
460-520
460-520
460-520
460-520

Material OD
mm
1000
1200
1200
1200
1200

Motor
HP
1
2
2
2
3

Expansion Style
Manual Type
