Uncoiler Straightener Machine(0.5-4.5/6.0mm) Series

2 In 1 Uncoiler And Starightener

Author:admin Time:2017-10-30

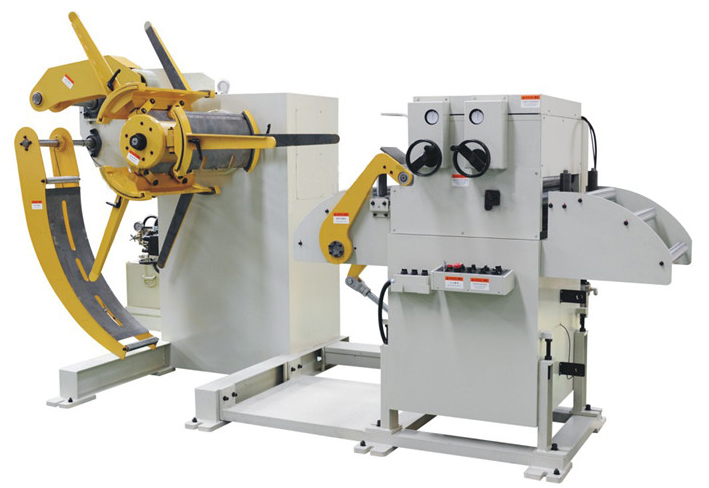

2 In 1 Uncoiler And Starightener

detailsProblems(8)Online order


2 In 1 Uncoiler And Starightener Feature and advantage:

1.Save factory area. 2 machines together one.

2.Suitable for material thickness :0.5-4.5mm.

3.Suitable for all kinds of metal coil automatic straightening ,easy to operate.

4.Suitable for metal parts, electron, electrical appliance, toy and auto parts continuous pressing production, straightening .

5.Fast speed:0-16m/min.

Model
Unit
GL-300H
GL-400H
GL-600H
GL-800H

Material Width
mm
300
400
600
800

Material Width
mm
0.5~4.5
0.5~4.5
0.5~4.5
0.5~4.5

Feeding Speed
m/min
16
16
16
16

Straighten Rollers
Qty
4 On Top/3 On Bottom

Pinch Rolls
Qty
Inlet: 2 /Outlet: 2

Rack Load
kg
2000
3000
5000
7000

Material ID
mm
460-520
460-520
460-520
460-520

Material OD
mm
1200
1200
1200
1200

Straighten Motor
HP
1.5
2.2
5.5
5.5

Uncoil Motor
HP
2
3
5
7

Expansion Style
Hydraulic Distension
